ARCH 1142 Montage-it! - Final submission

Poster

ARCH 1142 Montage-it! - week one

Concept Model

Montage

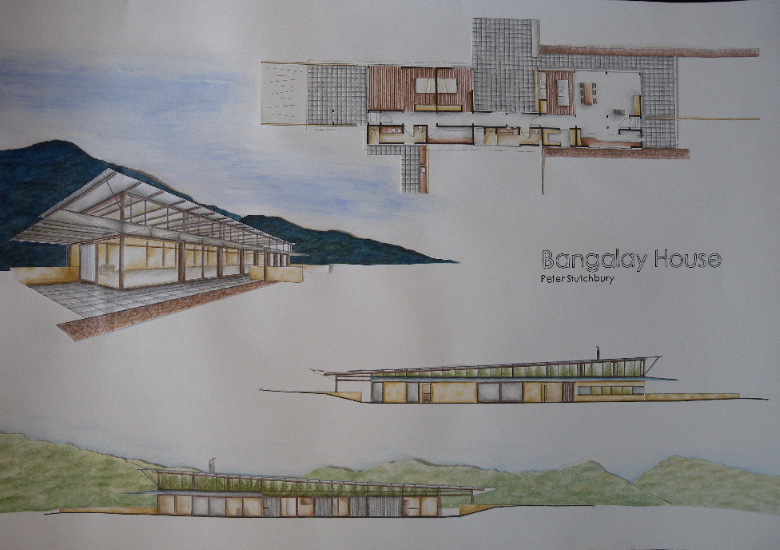

ARCH 1142 Draw-it! - Final Submission

Poster

ARCH 1142 Draw-it! - week one

ARCH 1142 Model-it! - week three

In class model

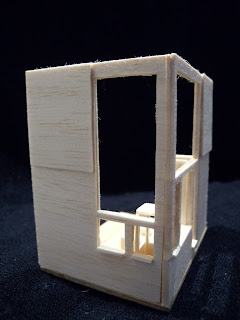

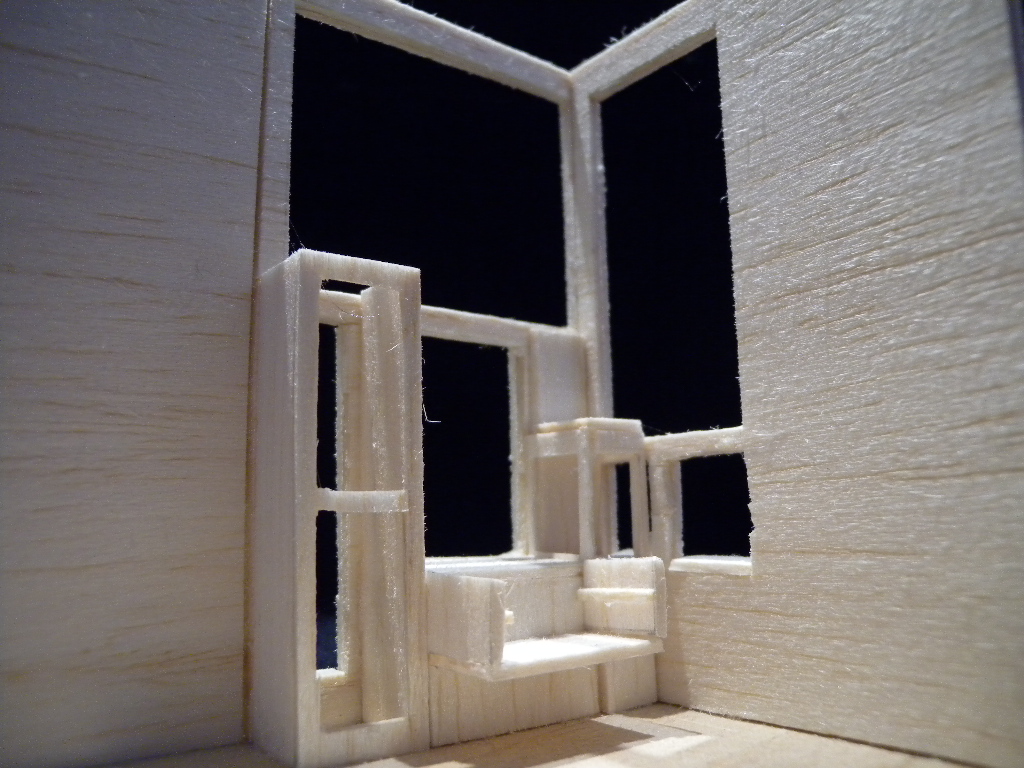

The last in class model is a corner of the fisher house. As there are quite a lot of details, it is challenging to make by just looking at the sections and photos.

Take home task
Fisher House ( Louis Kahn)
1:50

This is the final model  of 'model it!'. Making this model  is a long process, as it is in a relatively large scale, every details have to be shown clearly.

Poster

ARCH 1142 Model-it! - week two

In class models

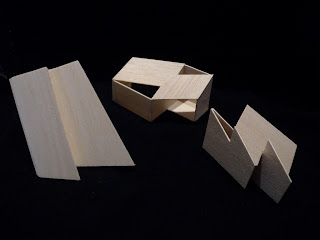

For this week, we are required to make 3 different models from the same section. We start to explore the possibilities  of architecture.

Take home task
Fisher House (Louis Kahn)
1:200


We have developed skills on making contour lines after this task. Cutting smooth edges is quite hard as I am using cardboard to make the contours.

ARCH 1142 Model-it! - week one

In class model
The first in class model involves making two houses and connect them in a creative way. This is the first model that I have ever made. Although the two houses themselves are not hard to make, combining them in an interesting way can be quite challenging.

Take home task
Barcelona Pavilion (Mies van der Rohe)
1:200


Managing the scale and the dimensions of the model is not easy as it is the first time for me to make a model which is to scale. As the scale of this model is quite small, some detailed parts such as the stairs and the window frames are quite hard to make and required a lot of patience. However the final product gives me a sense of achievement.
